VCOG 1-6X24 LED MOA GREEN SEGMENTED CIRCLE / CROSSHAIR – MATTE BLACK, THUMB SCREW MOUNT

Description

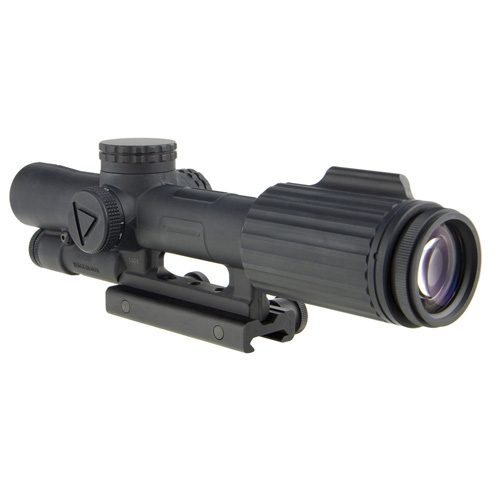

VCOG 1-6×24 LED, MOA Green Segmented Circle / Crosshair

The Trijicon 1-6×24 VCOG® (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle/MOA reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), it has 6 user-selectable brightness settings. The green LED boasts a battery life of 1,400 hours at setting 4 (constant on); the red LED has a 700 hour battery life. An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).

Description:

• SUPERIOR QUALITY GLASS – Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion
• VIRTUALLY INDESTRUCTIBLE – Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.
• RAPID TARGET ACQUISITION – First focal plane reticle allows user to rapidly acquire target and apply correct hold throughout magnification range.
• BRIGHT, CRISP ILLUMINATION – Brilliantly illuminated reticle is powered by a single AA battery.
• QUICK, ACCURATE RANGING RETICLES – 1-6×24 offers BDC or Universal MRAD and MOA reticles; 1-8×28 offers Universal MRAD and MOA reticles
• EASY-TO-SET ADJUSTERS – Allows user to easily adjust windage and elevation.
• NO RINGS NEEDED – The need for conventional ring mounts is eliminated with the integrated mounting adapter that provides quick and easy mounting to any rail system. Compatible with many rails in the marketplace designed to fit the Trijicon ACOG®.
• ADJUSTABLE BRIGHTNESS SETTINGS – Multiple brightness settings with an “off” between each setting. 1-8×28 models feature 11 brightness settings, 1-6×24 models feature 6 brightness settings.
• QUICK MAGNIFICATION ADJUSTMENTS – Integrated dial fin allows easy rotation through magnification settings.

Specifications:

• Length x Width x Height 10.05 in x 2.51 in x 2.73 in (255.27mm x 63.75mm x 69.34mm)
• Weight 23.2 oz. (657.71g)
• Magnification 1-6x
• Objective Size 24mm
• Reticle Pattern Segmented Circle / Crosshair
• Day Reticle Color Green
• Night Reticle Color Green
• Focal Plane First
• Bullet Drop Compensating (BDC) Yes
• Caliber MOA
• Bindon Aiming Concept™ (BAC) Yes
• Illumination Source LED
• Power Source AA Lithium or Alkaline Battery
• Battery Life Green LED: 1,400 hrs continuous use at brightness setting 4 of 6
• Adjustment 1/4 MOA Per Click
• Adjustment Range Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 20 MOA
• Eye Relief 4 in. (101.6mm)
• Exit Pupil 0.41 in. – 0.15 in. (10.41mm – 3.81mm)
• Field of View (degrees) 18° – 3°
• Field of View (feet) 95 ft. – 15.9 ft. @ 100 yds. (31.67 – 5.3m @ 100m)
• Mount Flattop Thumbscrew Mount (TA51)
• Housing Material Forged Aluminum
• Finish Matte Black
• Submersion Depth 66 ft. (20m)
